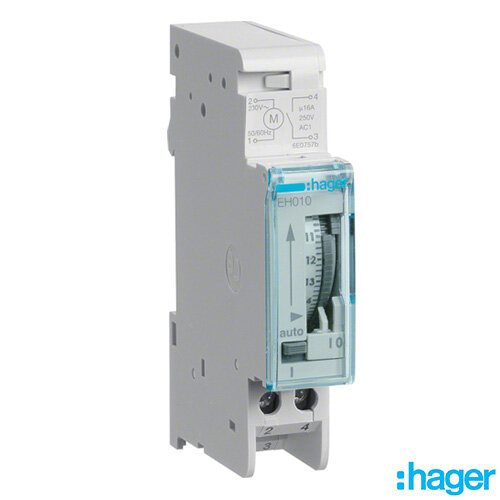

Hager HAGEH010 | Channel Daily Timer
EH010 1 Channel Daily Timer | Din Rail Mounted | Lighting Controls
Features:
The Hager EH010 is a digital, 1 channel, analogue time switch, with adaily cycle. It is Din-Rail mounted and has a minimum switching time of 15 minutes. The EH010 has can be manually switched between summer and winter.
Product Specification:
| Type of programming: | analog |
| Cycle: | daily |
| Shortest switching time: | 15 mn |
| Type of contacts: | 1 changeover |
| Supply failure reserve: | without |
| Breaking capacity: | 16A 250V AC1 |
| Max. power with incandescent lamps: | 900 W |
| Type of connection: | with screw |
| Connection cross-sect. flexible conductor: | 1 / 6mm² |
| Connection cross-sect. rigid cable: | 1,5 / 10mm² |
| Fixing mode: | Din-Rail |
| Frequency: | 50 Hz |
| Number of channels: | 1 |
| Number of program steps: | 96 |
| Operating temperature: | -10…55 °C |
| Storage/transport temperature: | -20…70 °C |
| Protection index IP: | IP20 |
| Summer / Winter time change: | manual |
| Power consumption (operation): | 0,5 VA |
| Height of installed product: | 80 mm |
| Width of installed product: | 18 mm |
| Depth of installed product: | 60 mm |
| Number of contacts: | 1 |
| Number of modules: | 1 |
| Working accuracy: | 1 |
| Total power loss under IN: | 1 W |
| Power dissipation per coil: | 0,5 W |
| Supply voltage: | 230V AC |
