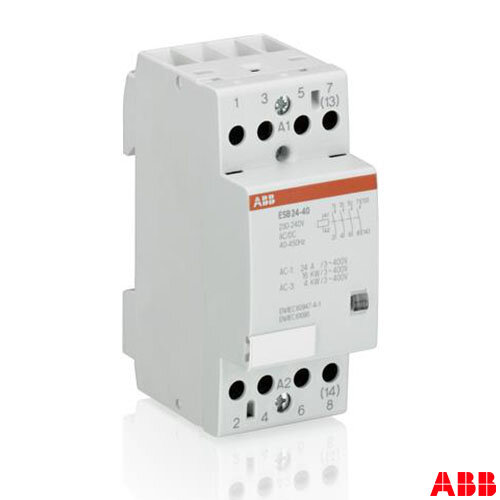

ESB24-40-230AC/DC Installation Contactor
The ESB24 installation contactor is a 4 pole contactor suitable for modular switchboards. They are specially designed fitting to modular DIN rail products and for applications where customers want to use the panel design with high finger protection. Installation contactors are used in residential, commercial and industrial applications for the control of single or three-phase loads up to 24 A or switching of control signals. Further features are the noiseless and hum-free DC coil, the integrated overvoltage protection up to 5 kV and a switch position indication. Auxiliary contacts, distance pieces and sealing cover for protection against unauthorized changes are available as accessory.
Download Product Datasheet:
| Number of normally open contacts | 4 |
|---|---|
| Number of modular spacings | 2 |
| Number of normally closed contacts | 0 |
| Rated operating voltage | 220...400 V |
| Rated operation current | 24 A |
| Rated excitation voltage | 230...240 V |
| Built-in depth | 58 mm |
| Utility category | - |
| Max. incandescent lamp load | - W |
| Max. load fluorescent lamp | - VA |
| Max. load fluorescent lamp (Duo circuit) | - VA |
| Max. load fluorescent lamp (parallel compensated) | - VA |
| Slider for hand switch | false |
| Degree of protection (IP) | IP20 |
| Voltage type (operating voltage) | - |
| Voltage type (excitation voltage) | AC/DC |
| Additional equipment possible | false |
